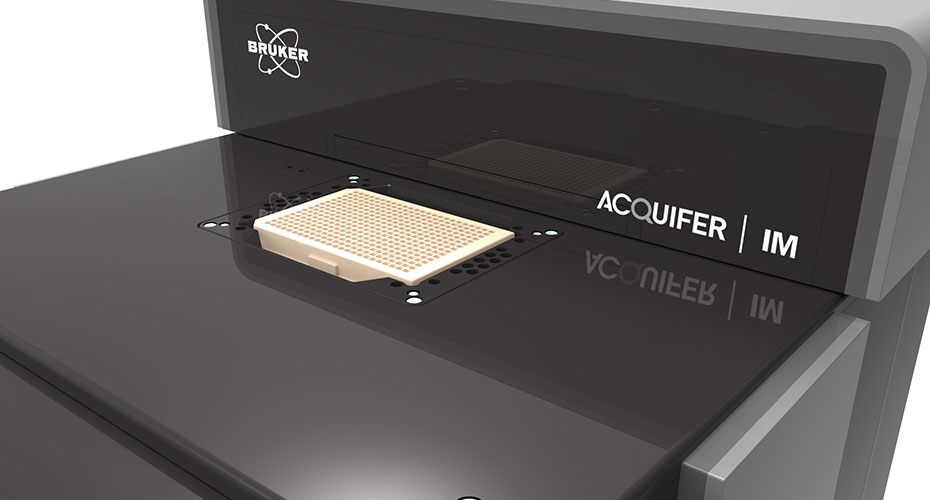

Acquifer IM – high content imaging system
The Acquifer Imaging Machine (Acquifer IM) is a fully automated microscope system that can image multi-well plates, offering rapid imaging and the high throughput required for screening. Fitted with Brightfield, LED Fluorescence illumination and a large, motorised Z drive, this system is perfect for imaging a wide variety of sample types and model systems.
- High throughput screening, suitable for a range of models, from cell monolayers to organoids and embryos to larval Zebrafish
- Fully automated, long-term timelapse imaging
- Multi-well plate holder enables imaging of 6-well to 96-well plates.
- Fully automated system with user-friendly control software.
- Large Z range facilitates stacking through thicker samples.
- Sample stage is static while optics are moved around – this prevents vibrations of the sample.
- Fully programmable for customised workflows
Objectives
- 2x, 0.06 NA Air
- 4x, 0.13 NA Air
- 10x, 0.3 NA Air
- 20x, 0.45 NA Air
Laser Lines
- Bright Field Transmitted Light
- 385nm
- 470nm
- 555nm
- 595nm
Additional Features
- Hamamatsu sCMOS 2k x 2k
